ELERIX EX-12VL100K-AH-SET

ELERIX EX-12VL100K-AH-SET (1.2 kWh, 12 V)

ELERIX 1.2 kWh LiFePO4 Kit (12 V) with 100 Ah Cells + Accessories.
High Energy Efficient Lithium Cells, Elerix Battery Original Product with LiFePO4 Technology.

Industrial lithium cell with high energy density and 100 Ah capacity, manufactured on the basis of safe LiFePO4 technology. The battery is made of high-quality materials and does not contain any toxic chemicals, which guarantees a long service life.

LiFePO4 is a very safe technology, with no spontaneous combustion, no fire and no explosion. The self-discharge rate is very low. There is no memory effect - the cells can be recharged in any state of discharge.
All ELERIX cells are thoroughly tested in Tier 1 factories before distribution, including during production and before shipping. The ELERIX brand is characterized by the high quality of its cells, which are mainly class A.

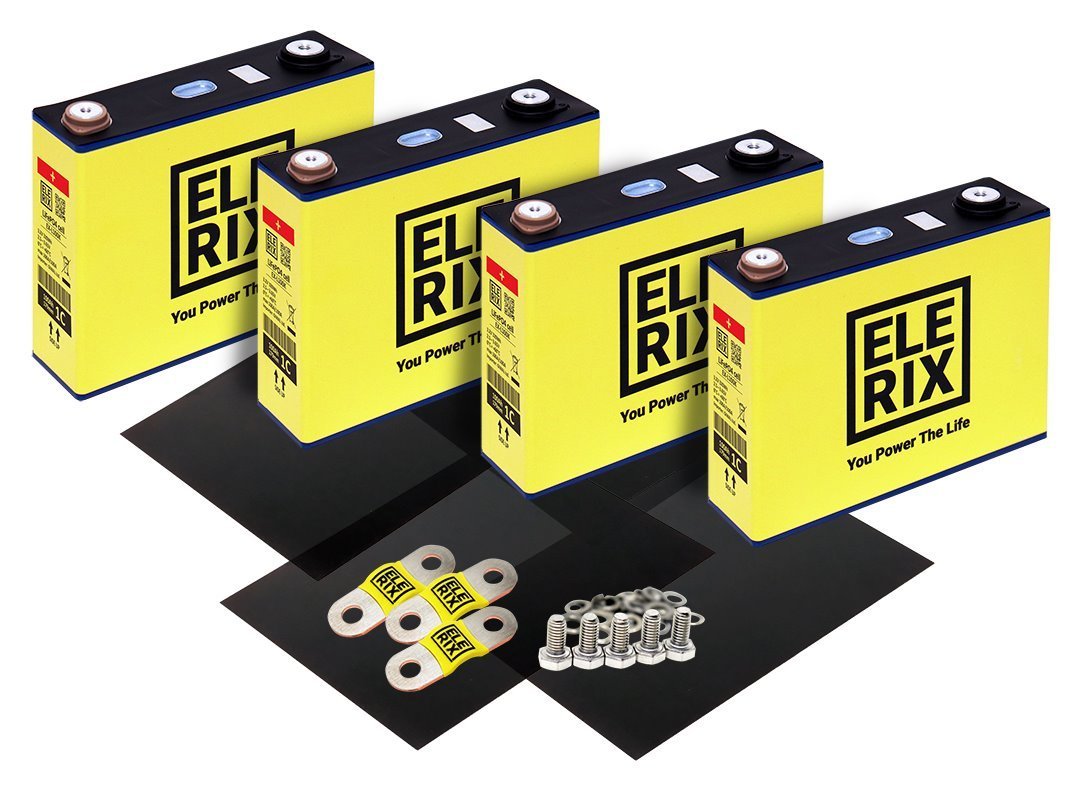

Kit contents

4× ELERIX EX-L100K

1× ELERIX GWL-M6L (M6×12)

3× ELERIX EX-TC50/6

3× ELERIX EX-SEP-KT

ELERIX EX-L100K

• High production quality and long service life
• Small and light cells
• Suitable for electric vehicles, light applications, energy storage and solar applications
• Free of toxic chemicals
• Aluminum Housing
• High power up to 1 C (100 A discharge)
• Lithium Iron Phosphate (LiFePO4) Technology
• 3000 cycles & 15 years service life
• Provides high currents at peak discharge (2 C, 200 A)
• Operating temperature 0 to +50 °C (charging)

4 cells, 12 V
Total capacity 1200 Wh / Depth 195 mm / Weight 9.2 kg

Discharge test

Operating instructions

• Before using the cell for the first time, the cell must always be charged to full voltage
• The initial charge must be made with a low current at max. 0.5C - i.e. 50 A for a 100 Ah cell
• Cell terminals must be protected from dirt, damage and short circuits
• Cells must be monitored and protected against deep discharge and overcharge
• Charging and discharging must be carried out under supervision

Initial charge
The cells are pre-charged by the manufacturer to a conservation charge (usually 30-50%). Before using the cells for the first time, they need to be charged with a low current. The first charge should not exceed 0.5 C - i.e. 50 A for a 100 Ah cell.

BASIC SPECIFICATIONS

Technology: Lithium (LiFePO4)
Capacity: 100 Ah
Rated Voltage: 3.2 V
Operating Voltage: 2.5-3.65 V
Maximum Charging Voltage for Initial Charge: 3.65 V
Peak Discharge Current: 200 A (30 s max)
Energy Density: 139 Wh/kg
Dimensions: 173 × 138 × 48 mm
Operating Temperature (Discharge): –20 °C to 60 °C
Operating temperature (charging): 0 °C to 50 °C
Clamp tension force: up to 4 N/m
Weight: 2.3 kg
