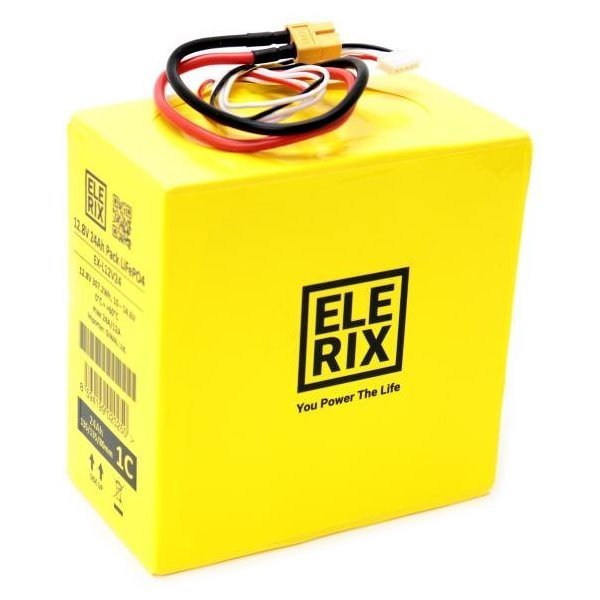

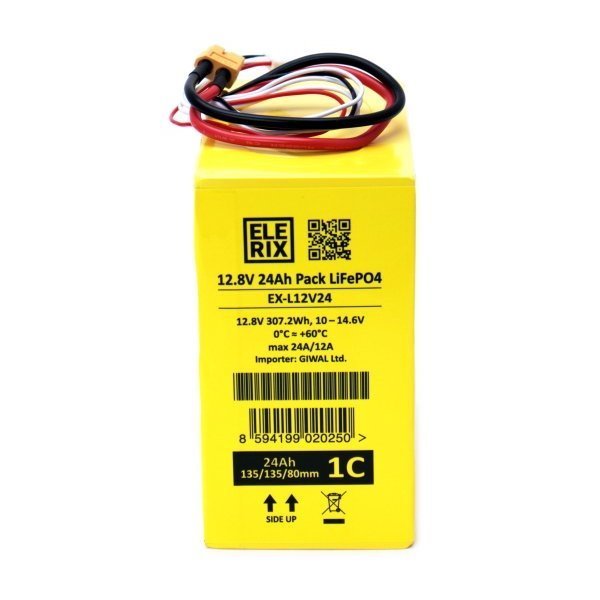

ELERIX 12V 24Ah

ELERIX EX-L12V24

ELERIX 12 V (24 Ah) lithium LiFePO4 battery with XT60 connector and 5-pin balancing connector. To achieve higher capacity, we recommend using cells in parallel, i.e. 48 Ah (2 cells), 72 Ah (3 cells), 96 Ah (4 cells).

Properties:

• Lithium Iron Phosphate (LiFePO4) Technology
• Long cyclic and universal service life (3000 cycles and 15 years)
• Contains no toxic chemicals
• Safe technology without spontaneous combustion, fire or explosion
• Plastic protective case

LiFePO4 is a very safe technology (no spontaneous combustion, fire or explosion). The self-discharge rate is very low and there is no memory effect (cells can be recharged in any state of discharge).

• Maximum charging voltage for initial charge: 12.8 V
• Maximum discharge current: 1 C
• Peak discharge current: 48 A (max. 30 s)
• Energy density: 123 Wh/kg
• Maximum discharge current: 48 A
• Optimal discharge current: 8 A
• Maximum charging current: 48 A
• Optimal charging current: 8 A

BASIC SPECIFICATIONS

Technology: lithium (LiFePO4)
Rated voltage: 12.8 V
Voltage: 12 V (10 to 14.6 V)
Capacity: 24 Ah (307.2 Wh)
Connectors: XT60 (200 mm), 5pin (balancing)
Weight: 2.5 kg
Dimensions: 135 × 135 × 80 mm
