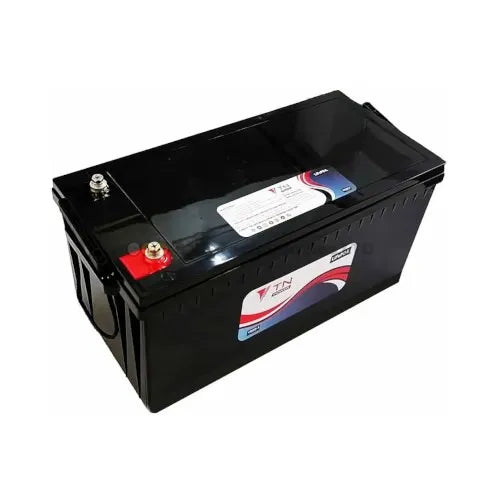

TN Power Lithium 12V 320Ah Leisure Battery LiFePO4 BLUETOOTH and Heater
TN Power Lithium 12V 320Ah Leisure Battery LiFePO4 BLUETOOTH and Heater
Regular price
£964.94 GBP
Regular price
Sale price
£964.94 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
General Specifications: 12.8V 320Ah LiFePO4 Battery
TN-LFP12320A-HB
| Category | Parameter | Specification |
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 320Ah | |
| Nominal Energy | 4096Wh | |
| Internal Resistance | $\le$ 8m$\Omega$ | |
| Cycle Life | 8000 cycles @ 0.2C (until 70% capacity) | |
| Self Discharge | < 2% per month @ 25°C | |
| Standard Charging | Max. Charging Voltage | 14.0V ~ 14.4V |
| Charging Mode | CC/CV (Constant Current/Constant Voltage) | |
| Recommended Charge Current | 64A | |
| Max. Charging Current | 160A | |
| Standard Discharging | Discharging Cut-off Voltage | 10.8V |
| Recommended Discharge Current | 64A | |
| Max. Continuous Current | 200A | |
| Max. Pulse Current | 500A (<10S) | |
| Operating Conditions | Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Storage Temperature | 0°C to 45°C (32°F to 113°F) | |
| Relative Humidity | 60 $\pm$ 25% | |
| Structure & Mechanical | Water/Dust Resistance | IP65 |
| Casing Material | Plastic | |
| Dimensions (LWH*TH) | 502 x 186 x 240 x 240 mm | |
| Weight | 26 kg | |
| Terminal Type | M8 | |
| Optional Features | Additional Functions | Heater (Optional), Bluetooth (Optional) |
Product Features & Applications
| Category | Specification / Feature Details |
| Technology | Premium Lithium Iron Phosphate (LiFePO4) cells for superior safety and longevity. |
| Cycle Life | Thousands of cycles at 100% Depth of Discharge (DOD) under normal conditions. |
| BMS Protection | Integrated Battery Management System (BMS) protects against over-charge, over-discharge, over-current, and over-temperature. |
| Maintenance | Completely maintenance-free with automatic internal cell balancing. |
| Weight | Highly portable; approximately 30% – 50% the weight of equivalent lead-acid batteries. |
| Compatibility | Versatile charging; compatible with most standard lead-acid chargers. |
| Operating Temp | Reliable performance in extreme environments: -20°C to 60°C. |
| Expandability | Supports series expansion (up to 51.2V) and parallel configuration (up to 2 units). |
| Applications | Solar & Wind power, Backup systems (UPS), Home Energy Storage, Golf Carts, Electric Vehicles (E-bikes/E-rickshaws), and Lighting. |
