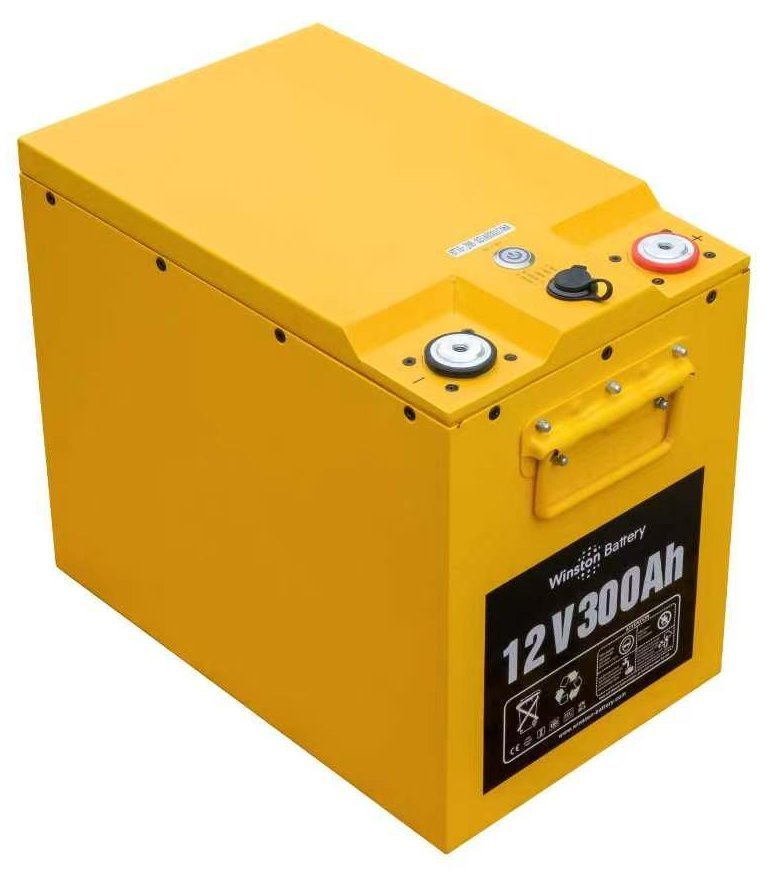

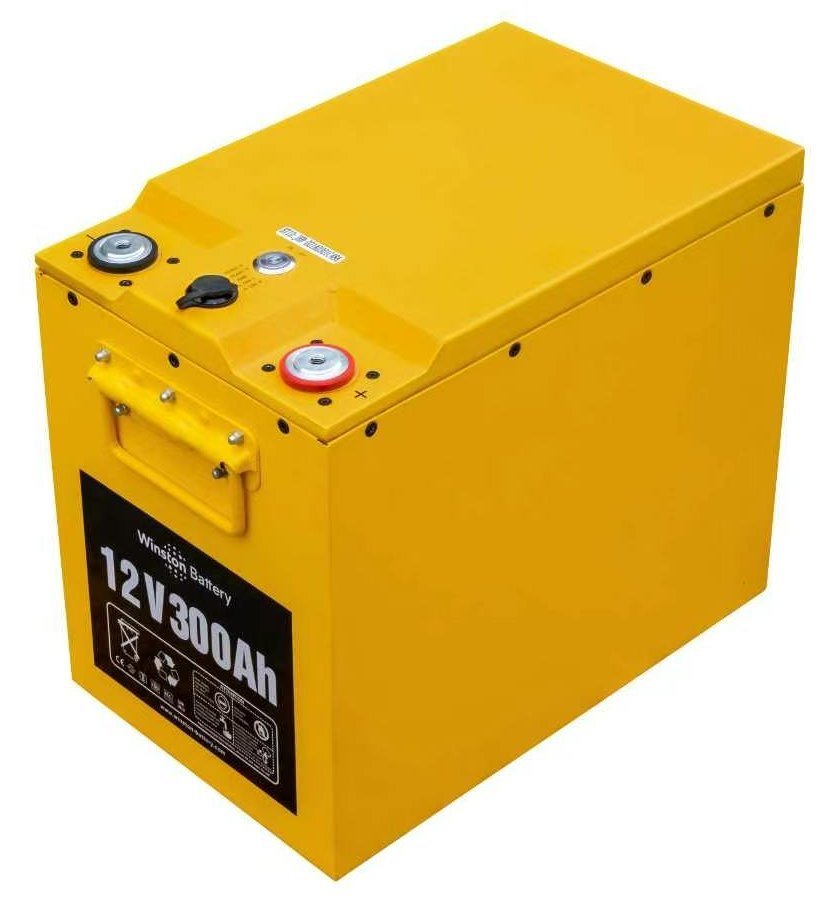

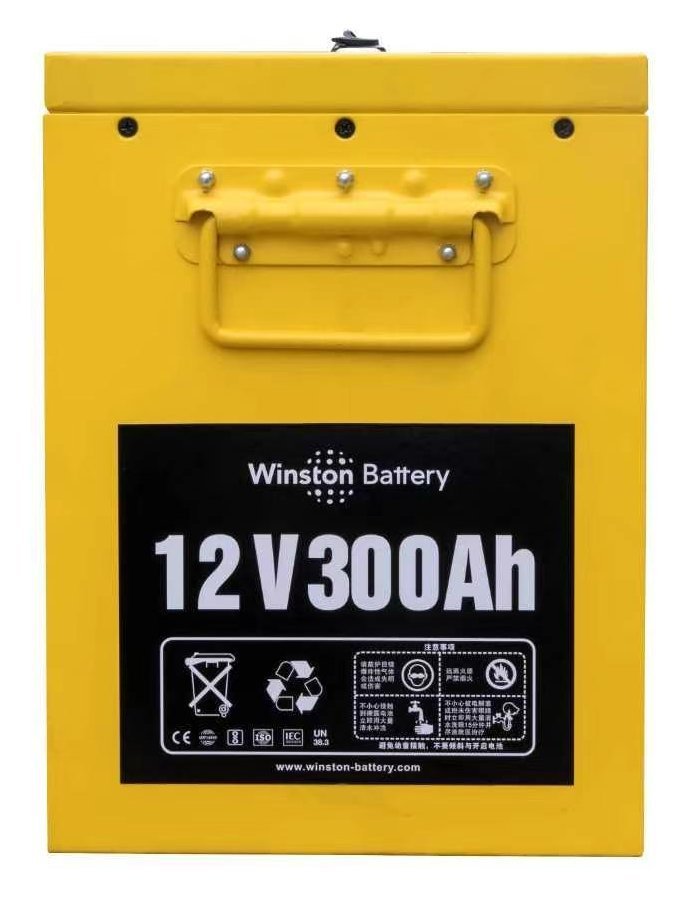

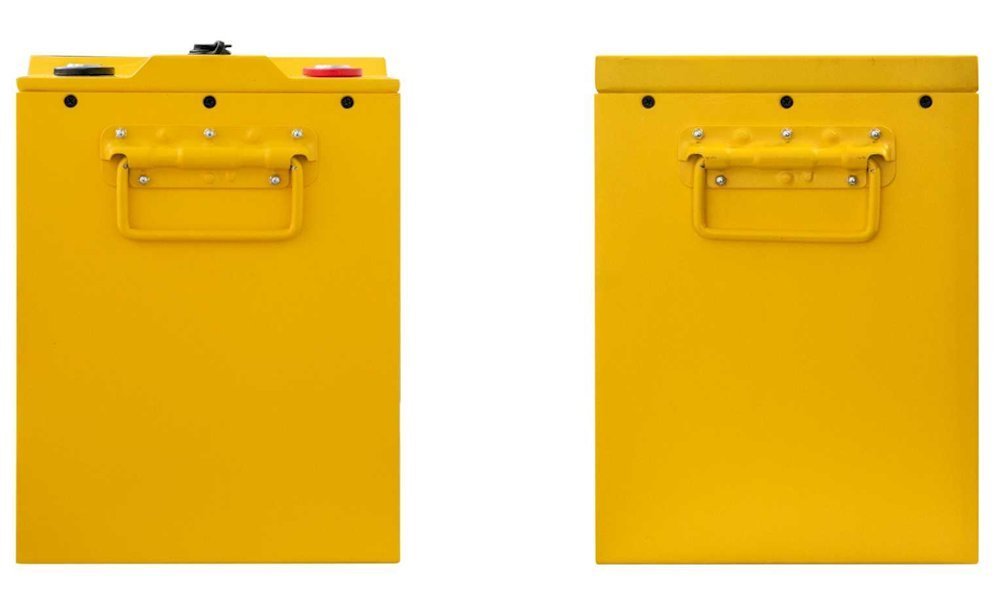

Winston TSWB-LP12V300AH LiFePO4 (12V/300Ah)

The most advanced technology for electrical energy storage!

High-performance lithium battery with yttrium content. LiFeYPO4/LiFePO4 (voltage 12 V, capacity 300 Ah). Original Winston WB-LP12V300AH battery (formerly ThunderSky TS-LP12V300AH).

Features:

Capacity: 300 Ah (3960 Wh)
Cycle life at 0.5 C: >11,000 cycles 60% DOD
Self-discharge: 1.5% per month
Maximum discharge current: 200 A
Optimal discharge current: 150 A
BMS cutoff during discharge: 9.2 V
Maximum charge current: 200 A
Optimal charge current: 150 A
Recommended float charge voltage: 14.4 V
BMS cutoff during charging: 14.8 V

Charge and discharge characteristics:

Battery communication and management

The 12 V battery has a simple BMS and balancer built in. The BMS monitors and controls the individual battery cells and protects them from damage such as overload and overvoltage. It consists of finely balanced cells with identical performance. The battery must be managed and operated as a single monolithic 12 V block.

For communication with inverters, the battery uses 2 interfaces, RS485 and CAN. Both interfaces are integrated into a single connector located on the top of the battery.

To communicate with the battery, download the "SMART BMS" app to your smartphone on

Google Play:
https://play.google.com/store/apps/details?id=com.inuker.bluetooth.daliy&pcampaignid=web_share

or via QR code:

The app offers the following parameter reading and configuration options:

1) Parameter reading: alarm fault information, number of temperature sensors, number of battery strings.
2) Protection parameters: cell overvoltage protection, cell undervoltage protection, total overvoltage protection, total undervoltage protection, differential pressure protection, charge overcurrent protection, discharge overcurrent protection.
3) Basic characteristics: battery type, rated capacity, reference voltage, idle time, SOC setting, balance switching voltage, balance switching pressure differential.
4) Acquisition board settings: number of acquisition boards, acquisition board 1 temperature, acquisition board 2 temperature, acquisition board 3 temperature.
5) Temperature protection: high temperature protection during charging, low temperature protection during charging, high temperature protection during discharging, low temperature protection during discharging, temperature differential protection (?T), power component overheating protection.
6) System settings: charge switch, discharge switch, system restart, factory reset, current reset, password reset.

These batteries are suitable for use in the following applications:

BASIC SPECIFICATIONS

Technology: Lithium (LiFeYPO4/LiFePO4)
Terminal type: M12
Nominal voltage: 12.8 V
Operating voltage: 10.0–13.8 V
Capacity: 300 Ah
Operating temperature range: -20 to +60 °C
Battery casing: Metal & ABS
Protection rating: IP65
Weight: 48 kg
Dimensions: 366 × 250 × 350 mm
